About the “KillaJoule” electric motorcycle

About the KillaJoule

You will see a lot about KillaJoule on this website, so I should give it a proper introduction. KillaJoule is the world’s fastest electric motorcycle with a top speed of 270 mph (434 km/h) so far. It is built by me with the help of my husband, great industry partners, and whole bunch of other people. While it is definitely a team effort, about 80 % of the blood, sweat, tears, and hours in the KillaJoule are mine. The only purpose of this 19 ft. (5.6 meter), 400 horsepower, sleek motorcycle is to show that eco-friendly can be fast and sexy.

The only purpose of this 19 ft. (5.6 meter), 400 horsepower, sleek motorcycle is to show that eco-friendly can be fast and sexy.
KillaJoule_COVER_Eva_white_dress-1024x728

Eva Hakansson and her KillaJoule at the Bonneville Salt Flats, Utah, USA.

The KillaJoule may look complicated, but if you think about it, it is just a giant cordless drill with wheels! It has a battery with the same kind lithium-ion chemistry that you will find in cordless tools, a motor, some power electronics and a throttle. And wheels, of course. Except for the wheels, it is pretty much the same components in as in a cordless drill. A 400 horsepower cordless drill….. ?

The picture below shows all the majors parts of the KillaJoule. Click on the photo for a larger picture.

killajoule_x-ray_jan_2016

Technical Data for the KillaJoule

Battery: A123Systems Lithium Nano-Phosphate, 400 V and 10 kWh. 500+ HP.

Motor: EVO Electric AFM-240 motor, 500 HP.

Motor controllers: Two Rinehart Motion Systems PM100 controllers, 400 HP combined.

Weight: about 1540 lb. (700 kg) including the rider Eva Håkansson

Dimensions: Length 19 ft (5.6 m), width appr. 21 inches (0.53 m), height appr. 38 inches (0.96 m), wheelbase 150 inches (3.8 m), track width when fitted with sidecar 45 inches (1.14 m)

Frame and suspension: Chrome-Moly steel tubing with “Springer” style front end and classic stereo suspension for rear end.

Brakes: Disc brakes front and back. Two Kevlar ribbon brake parachute, actuated with Bimba air cylinders.

Body: Fiberglass composite nosecone, canopy and sidecar wheel cover made by Nova Kinetics Aerosystems in Flagstaff, AZ. Body panels of pre-painted aluminum from ALRECO.

Rider, builder, designer and owner: Eva Håkansson

Crew chief, designer and owner: Bill Dubé

Senior adviser and designer of the suspension: Sven Håkansson

Pit crew: Mike Stockert, Alicia Kelly, and Kent Singleton

Current record (as of August 2016): World’s fastest electric motorcycle and the world’s fastest sidecar motorcycle @ 248.746 mph (400.2 km/h) (pending FIM ratification). Complete list of records here. It is also the world’s 4th fastest battery-powered vehicle (higher records were set by the cars White Lightning and Buckeye Bullet 1 and 2.5).

Registered top speed: Currently 270.224 mph (as of September 2014).

“Fuel”: The battery in KillaJoule is recharged using solar power at home in Colorado, or by a hybrid quiet bio-diesel powered generator from CumminsOnan at the race track. We would love to use solar panels at the track, but we can’t afford it…

Don’t forget to check out our great PARTNERS that made KillaJoule possible.

Follow Eva and the building of KillaJoule in her blog and on our Facebook page www.facebook.com/EvaHakanssonRacing

You will find VIDEOS of Eva and the KillaJoule here

mini-killajoule_front_photo-anthony_olway_ttxgp

The KillaJoule is according to international competition rules classified as a “sidecar streamliner motorcycle”. It has three wheels and very small frontal area. Photo by Anthony Olway/TTxGP.

mini-brake_chute_killajoule_2_photo_by_doc_harley

It takes a Kevlar ribbon brake chute to stop from 270 mph (434 km/h). Photo by Doc Harley.

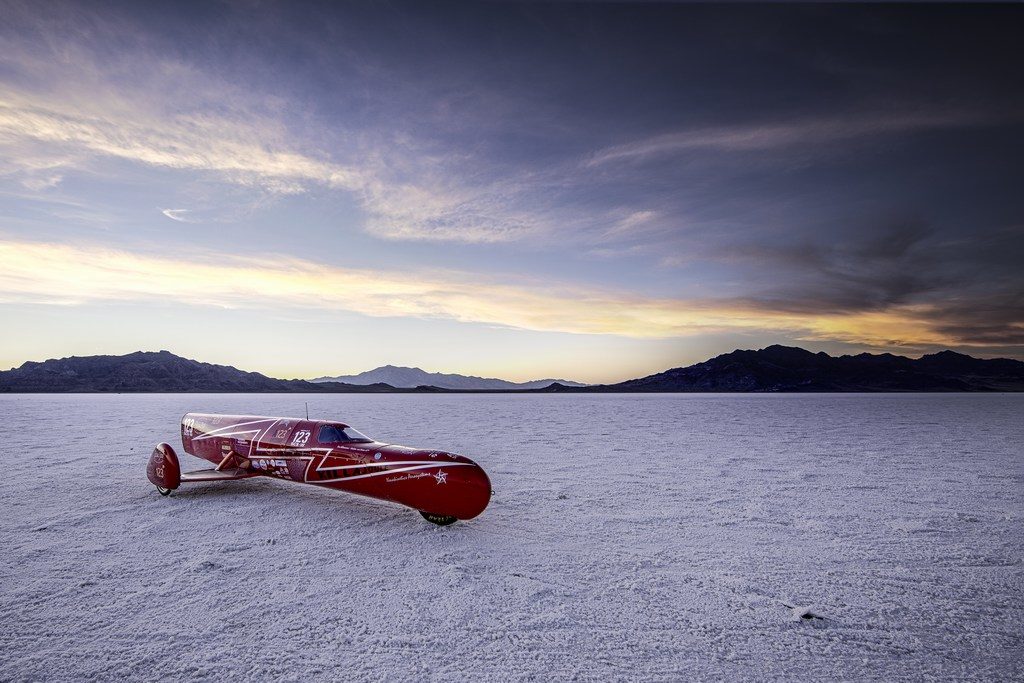

mini-killajoule_by_scott_sneddon-diy_photography

Bonneville Salt Flats in Utah, USA, is an ancient salt lake that during the summer dries to a hard, flat surface. It is the perfect place for speed record attempts. Photo by Scott Sneddon.
